Welding Robot SDCXRH06A3-1490/18502060

A brief introduction of the product

The emergency of industrial robots has taken the place of the traditional manpower mode. It improves the work efficiency, helps the development of enterprises and greatly saves the enterprise’s manpower cost, with the feature of high efficiency, stability, economy and safety. It is also widely used in the field of hardware welding such as automobile and accessories, motorcycle and accessories, agricultural machinery, engineering machinery, etc.. (Remarks: Contact with inflammable, explosive and corrosive gases and liquids shall be avoided; splashing water, oil and dust is not allowed; and it shall be kept away from electrical appliance noise source plasma)

Product Detail

Product Tags

Parameter

Model No.		SDCX-RH06A3-1490	SDCX-RH06A3-1850	SDCX-RH06A3-2060
Degree of Freedom		6	6	6
Drive mode		AC servo drive	AC servo drive	AC servo drive
Payload (kg)		6	6	6
Repeated positioning accuracy (mm)		±0.05	±0.05	±0.05
Range of motion (°)	J1	±170	±170	±170
	J2	+120~-85	+145~-100	+145~-100
	J3	+83~-150	+75~-165	+75~-165
	J4	±180	±180	±180
	J5	±135	±135	±135
	J6	±360	±360	±360
Maximum speed (°/s)	J1	200	165	165
	J2	200	165	165
	J3	200	170	170
	J4	400	300	300
	J5	356	356	356
	J6	600	600	600
Allowable maximum torque (N. m)	J4	14	40	40
	J5	12	12	12
	J6	7	7	7
Radius of motion		1490	1850	2060
Body weight		185	280	285

Range of motion

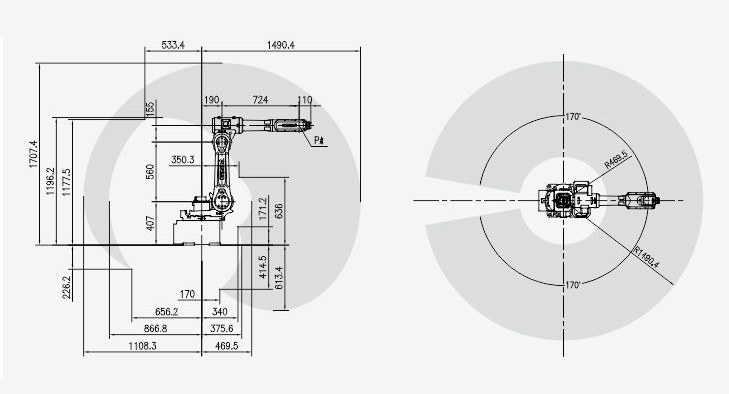

SDCX RH06A3-1490 Range of motion

Welding Robot SDCXRH06A3-149018502060 (3)

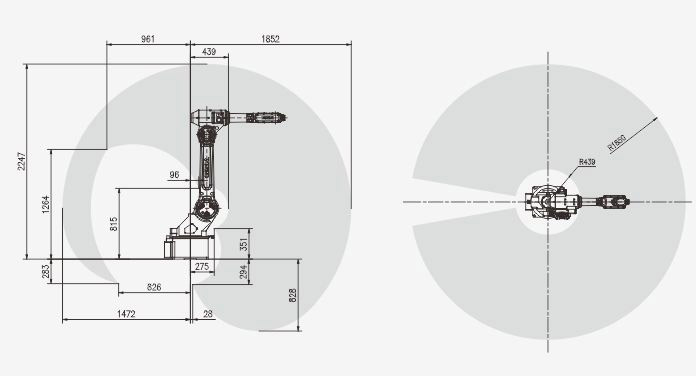

SDCX RH06A3-1850 Range of motion

Welding Robot SDCXRH06A3-149018502060 (4)

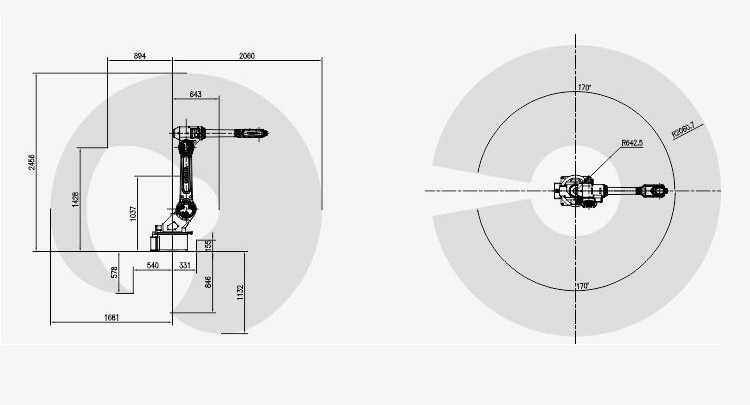

SDCX RH06A3-2060 Range of motion

Welding Robot SDCXRH06A3-149018502060 (5)
